Wound vs. Stacked Cells in Solid-State Power Banks, Explained

Spend any time in phone and gadget forums and you have probably seen people argue about "wound" versus "stacked" cells, usually while talking about solid-state power banks. The claim you hear most often is that stacked cells are the real thing and wound cells are less safe. Both terms sound technical, but they describe something simple: how the materials inside a battery get assembled. That choice affects how long a power bank lasts, how evenly it heats up, and how much safety margin it has. Here is what is actually going on inside the cell, and, at the end, which method TITANSHIELD uses.

First, what a cell looks like inside

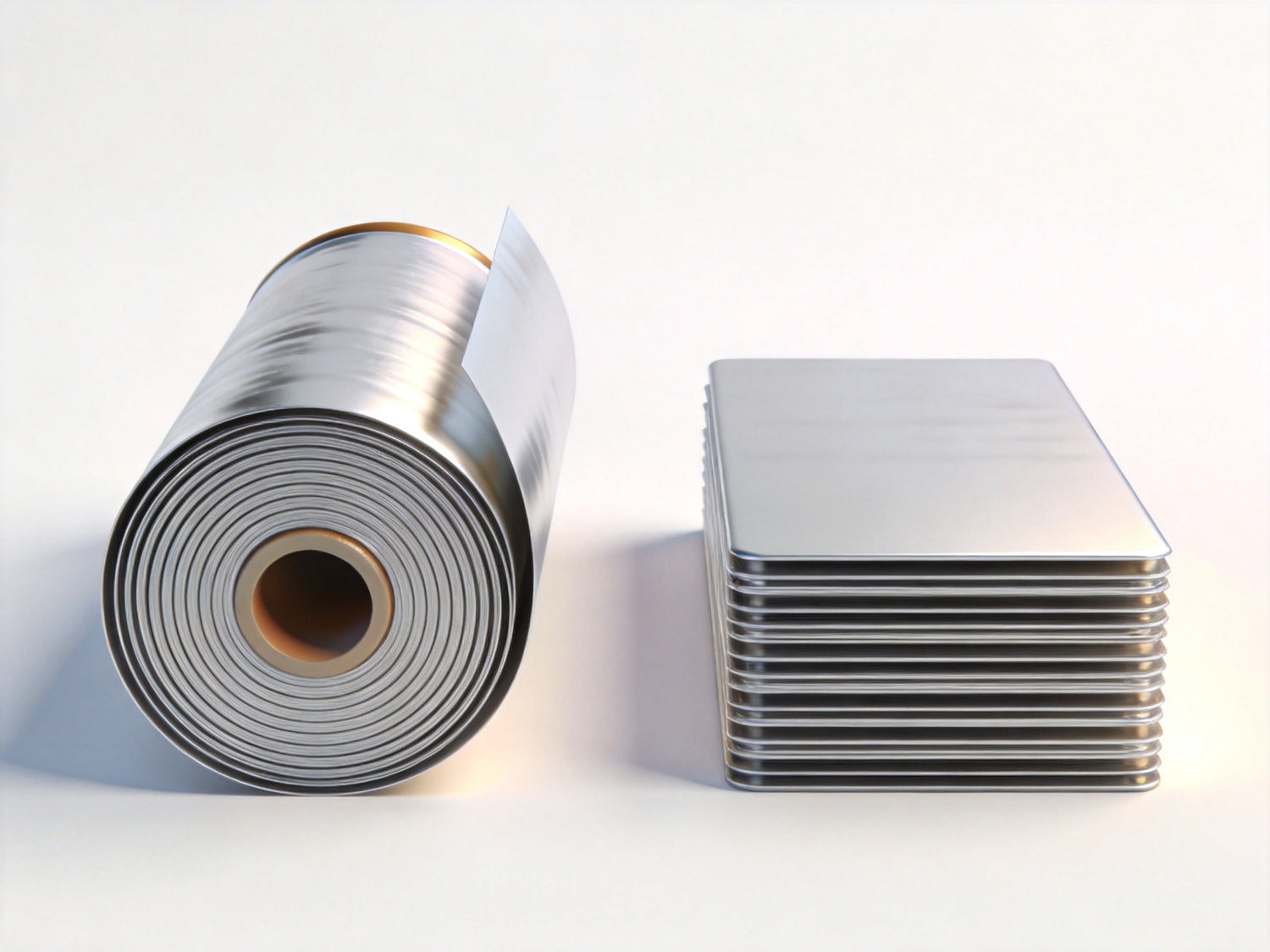

Whether it sits in a phone, a laptop or a power bank, a lithium cell is built from layers: a cathode sheet, a separator, an anode sheet, repeated in sequence, with electrolyte in between (liquid, semi-solid-state or solid). There are two main ways to turn those layers into a finished cell: winding and stacking. The difference between them is the subject of this article.

Winding: rolled up like a sushi roll

Winding takes the cathode, separator and anode as long continuous strips and rolls them around a central mandrel, the way you roll sushi or a roll of tape, into a cylindrical or flattened roll.

It is the most mature and most widespread method:

• Fast to make, low cost: continuous winding runs quickly on well-understood equipment. It is the mainstream method for 18650 cylindrical cells and for many flat cells.
• Steady yields: after decades of refinement, defect rates are relatively predictable.

Winding does carry one structural limitation. At the corners, where the strip bends around the turn, the electrode sheets take more bending stress, and tension is uneven between the inner and outer layers. Over many charge and discharge cycles, those corner regions are more prone to uneven lithium-ion distribution, which raises the risk of lithium plating (dendrite formation). That is one of the common reasons a battery loses capacity, and safety margin, late in its life.

Stacking: cut to size, one sheet at a time

Stacking works the other way around. Instead of one continuous strip, the cathode and anode materials are cut into individual sheets, then laid up like a sandwich or a pile of books: a cathode layer, a separator, an anode layer, squared off and repeated.

The advantages are direct:

• Every layer is flat, with no corner stress: each electrode sheet is loaded evenly, and contact with the separator is tighter and more consistent.
• Lower internal resistance, more even heating: uniform contact spreads current more evenly, so there are fewer local hot spots during charge and discharge. For a power bank that has to handle the current of 25 W Qi2.2 wireless fast charging, that is a friendlier structure.
• Lower lithium plating risk: without corners concentrating stress, lithium ions distribute more evenly, and the odds of plating over a long service life go down.

Stacking has a cost, of course. Every electrode sheet has to be cut, positioned and stacked individually, which means more process steps and tighter tolerances, and yields are typically lower than with winding. That is why stacked cells cost more, and why they are less common.

Why this comes up specifically with solid-state power banks

Wound versus stacked is an old debate in the battery industry. Applied to solid-state power banks, it becomes a sharper question.

The reason is material behavior. Solid and semi-solid-state electrolytes are harder and less elastic than liquid electrolyte. Winding forces the whole strip around several corners, and when the layer in the middle is closer to solid, those corners are more likely to develop micro-cracks, or gaps where the electrode and electrolyte no longer sit tightly against each other. Gaps are exactly what a solid electrolyte least wants.

With stacking, every layer stays flat and squarely piled, so the electrolyte layer is never forced to bend, and contact with the electrodes stays more even and more stable. In other words, stacking and solid or semi-solid-state electrolytes are a natural pairing, which is why this manufacturing detail keeps coming up alongside solid-state power bank discussions.

If you also want to know why solid and semi-solid-state electrolytes are less prone to thermal runaway in the first place, our earlier piece on how to choose a solid-state power bank covers that in more depth.

Being honest: stacking is not a guarantee

To be clear about it: stacking paired with a solid or semi-solid-state electrolyte does reduce lithium plating and local overheating, the two risk factors that build up over a long service life. It is the more solid approach. But more solid is not the same as never fails.

Any lithium battery, wound or stacked, will degrade, swell or fail if the housing cracks in a fall, it sits in water, it is over-charged or over-discharged, or it lives in a hot place. Cell structure affects durability and safety margin under normal use. It does not make a battery something you can drop, soak or bake without consequence.

One more caution: because stacking costs more, relatively few products on the market actually use it. If you see something claiming to be both fully solid-state and stacked while priced unusually low, that combination is worth checking. Brands that state their process and structure plainly are generally easier to trust than ones that stay vague.

FAQ

Which is more expensive, wound or stacked?

Stacked is typically more expensive. Every electrode sheet has to be cut, positioned and stacked on its own, so there are more process steps, tighter precision requirements and lower yields than with continuous winding. That shows up in the cell price, and it is why stacked cells are less common in retail products.

Is a stacked cell always safer than a wound one?

Structurally, stacking does remove corner stress and lower the lithium plating risk, so it is the more favorable design. But battery safety is the result of the whole system, including the electrolyte material itself, the protection circuit design and safety certification testing. Cell structure is one link in that chain, not the deciding factor on its own.

How would an ordinary buyer know which cell structure their power bank uses?

This information is rarely printed on the packaging. Either the brand states it, or you rely on a third-party teardown report. If the detail matters to you, ask the brand's support team directly. Brands that are straightforward about it are usually willing to explain both the cell structure and the electrolyte type.

Can a solid-state power bank be dropped or submerged?

No. A solid or semi-solid-state electrolyte plus a stacked structure reduces the risk of thermal runaway and fire. It does not make the battery drop-proof or waterproof. A cracked housing, long submersion, or a pack that has swollen from heat all mean the unit should be taken out of service immediately, whatever the cell structure.

TITANSHIELD uses stacked cells

Having said all that, it is only fair to say which method grantclassic's own TITANSHIELD solid-state power banks use. The answer is stacking.

That choice follows from what TITANSHIELD is designed to do: deliver power, not fire. Paired with a solid or semi-solid-state electrolyte, a stacked structure keeps contact between each electrode layer and the electrolyte more even and spreads heat more widely, which leaves more headroom in demanding situations such as 25 W Qi2.2 wireless fast charging. The process costs more. For a pack that rides against your phone every day and lives in a bag or a scooter storage box, it is worth it.

The structure is not only theory. TITANSHIELD commissioned a third-party nail penetration test at Chemitox's Hokuto LiB Test Center in Japan (report No. 251692, dated 2025-11-07), driving a 3 mm steel nail completely through the cell. Neither the 5,000 mAh cell (MF706385) nor the 10,000 mAh cell (MF146386) produced smoke, ruptured or caught fire, and the 5,000 mAh cell showed almost no temperature rise after penetration. Nail penetration is an abuse test rather than a mandatory PSE item; it is independent verification the brand chose to do on top of the required certifications. What it shows is how the combination of stacking and a solid or semi-solid-state electrolyte behaves under extreme physical damage. One honest caveat: this is the result under that laboratory's specific nail penetration conditions. A thicker nail or a larger impact could behave differently. A solid-state structure raises the safety margin considerably; it does not reduce risk to zero.

For the full picture on choosing a capacity and reading certifications, go back to the complete guide to choosing a solid-state power bank. If you would rather just pick one, the 5,000 mAh slim model and the 10,000 mAh capacity model both pair stacked cells with a solid or semi-solid-state electrolyte, and you can browse the full TITANSHIELD range.

Wound or stacked is, in the end, a question of how a battery puts its materials together. But that assembly method carries all the way through to how the cell heats, how long it lasts, and whether a solid electrolyte can do what it is supposed to do. TITANSHIELD went with stacking not because the word sounds impressive, but because it belongs with the rest of the safety logic: solid electrolyte plus a design built to avoid thermal runaway.

The even heating of a stacked structure matters most in exactly the situations travel creates: a pack squeezed in a suitcase for hours in a warm cabin. Our guide to 2026 power bank flight rules and which pack to take covers the latest ICAO and Japanese rules, and whether to travel with 5,000 mAh or 10,000 mAh.

grantclassic. Power, not fire.
